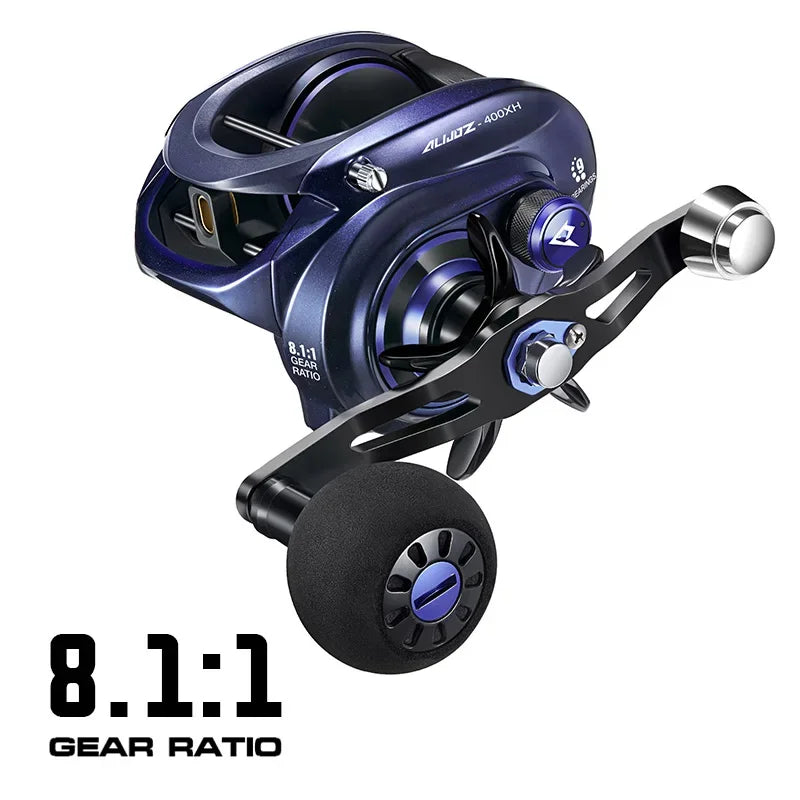

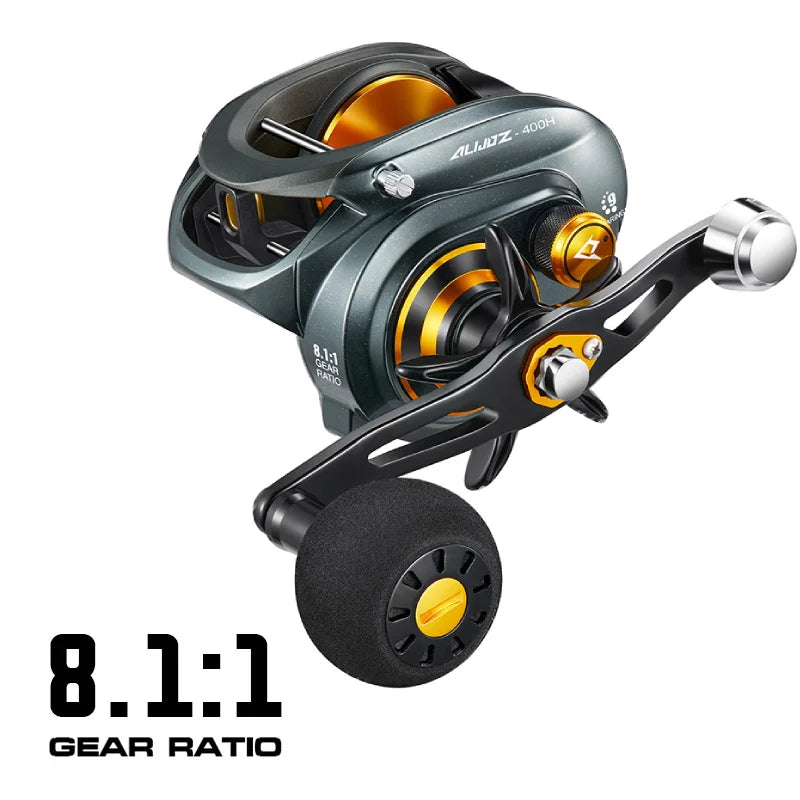

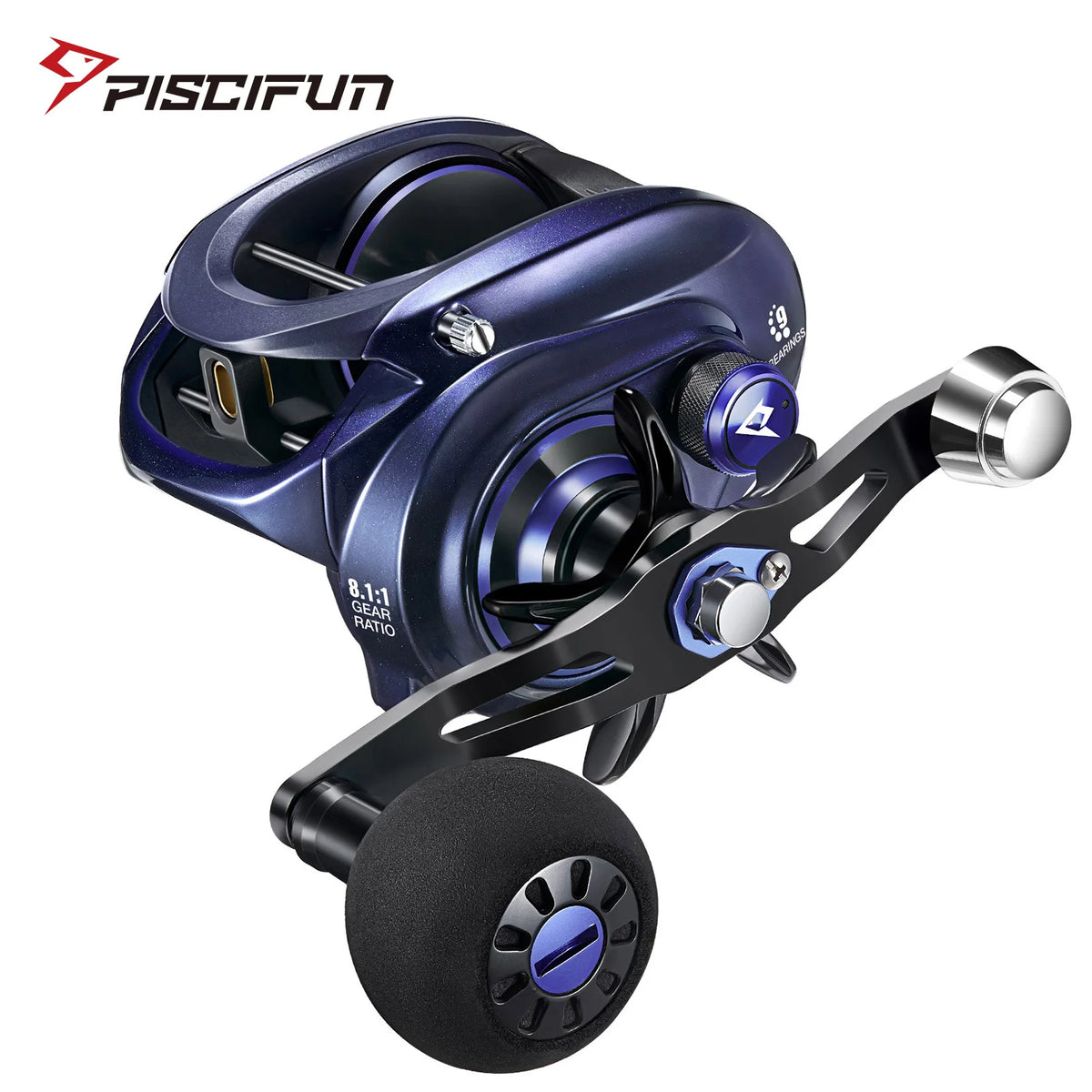

Piscifun Alijoz Alinox 400 Baitcasting Reel | Heavy-Duty 17kg Drag Aluminium Frame
Piscifun Alijoz Alinox 400 Baitcasting Reel | Heavy-Duty 17kg Drag Aluminium Frame
Couldn't load pickup availability
The Piscifun Alijoz Alinox 400 is a heavy-duty, high-capacity baitcasting reel designed for anglers using larger lures, heavier lines and live-bait setups. Built around an aluminium alloy frame, the 400-size reel combines substantial line capacity with up to 17kg / 38lb of supplier-rated maximum drag.
A dedicated bait-clicker switch provides an audible indication when line is being taken, while the magnetic braking system provides adjustable spool control during casting. Internally, the Alinox 400 uses hardened brass gearing and 8+1 bearings, with different drag specifications depending on the selected gear ratio.
Key Features
- Heavy-duty 400-size baitcasting reel
- Up to 17kg / 38lb maximum drag
- Aluminium alloy frame
- Aluminium handle and rear side cover
- Precision-machined hardened brass main and pinion gears
- 8 double-shielded stainless steel bearings + 1 additional bearing
- Integrated bait-clicker / line alarm
- Magnetic casting brake system
- Piscifun HDS Hercules Drag System
- 6.6:1 and 8.1:1 gear-ratio options
- Extended 120mm aluminium handle
- EVA handle knobs
- Designed for high-capacity freshwater and saltwater baitcasting applications

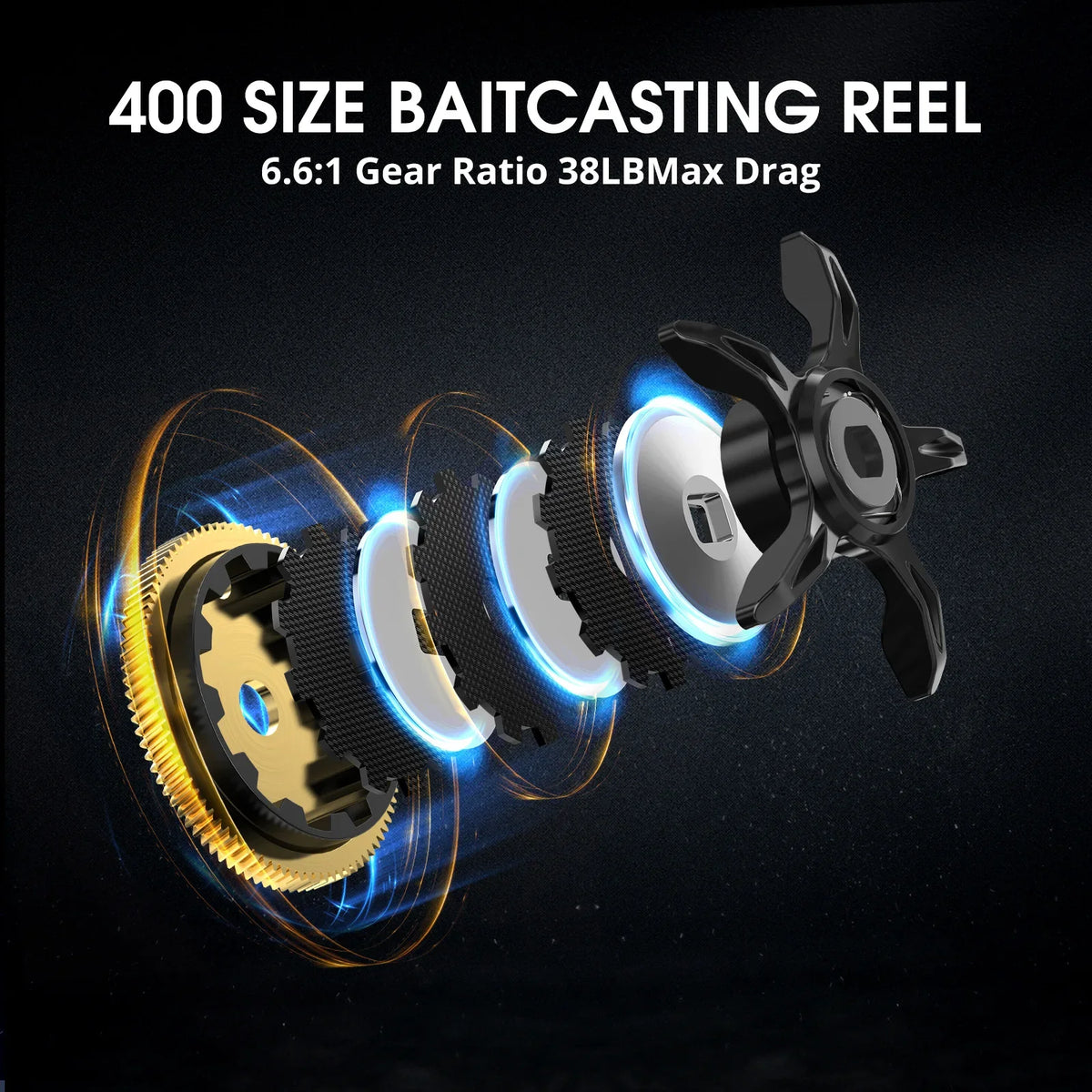

Heavy-Duty Drag System
The Alinox 400 uses Piscifun's HDS (Hercules Drag System), which is designed around an increased drag-pad contact area to generate additional friction and resistance.
Maximum drag varies depending on the selected gear ratio:
| Gear Ratio | Supplier-Rated Maximum Drag |
|---|---|
| 6.6:1 | 17kg / 38lb |
| 8.1:1 | 35lb / approx. 15.9kg |
This gives the Alinox 400 considerably more drag capability than a typical light baitcasting setup and makes it better suited to heavier line, larger lures and fish that require additional stopping power.
Bait-Clicker Line Alarm
An independent bait-clicker switch provides an audible indication when a fish begins taking line.
This can be particularly useful when fishing live or dead baits, allowing the reel to be set while providing an audible indication of line movement.
Magnetic Casting Brake
The magnetic braking system provides adjustable spool control during casting. This allows the braking level to be adjusted to suit different lure weights, casting conditions and individual casting styles.
Hardened Brass Gearing
The main gear and pinion are manufactured from precision-machined, double-hardened brass, with the supplier stating a 10% increase in overall gear strength.
The heavier gearing complements the reel's larger drag system and 400-size configuration for applications involving larger lures and heavier fishing loads.
8+1 Bearing System
The Alinox 400 uses:
- 8 × double-shielded stainless steel bearings
- 1 × additional bearing
The double-shielded stainless steel bearings are intended to provide additional resistance against contamination during use.

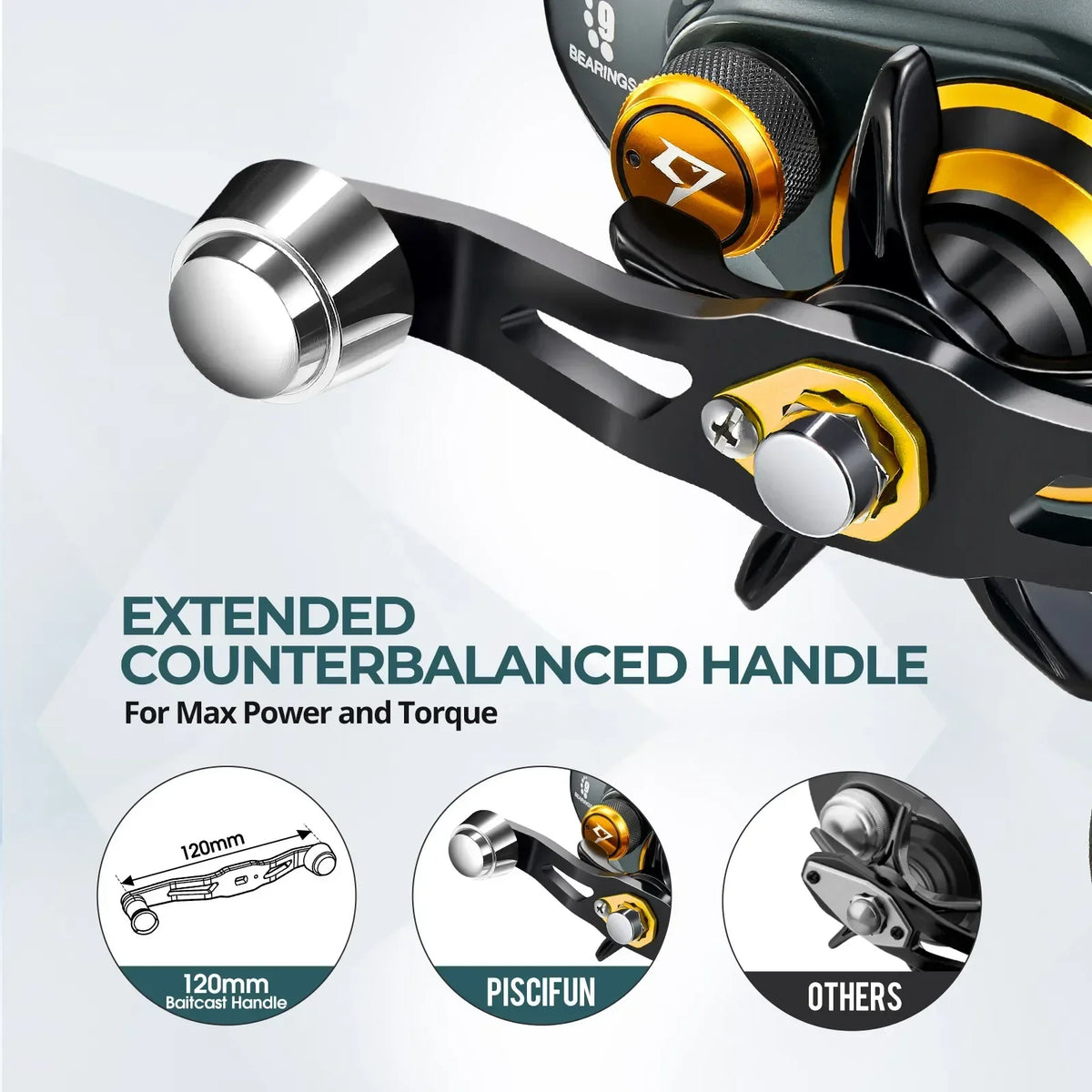

120mm Extended Handle
A 120mm extended aluminium handle provides additional leverage when retrieving under load. The handle is paired with EVA knobs for grip and control.
The longer handle can be particularly useful when working larger lures or maintaining pressure on stronger fish.
Suitable Fishing Applications
The combination of a 400-size spool, heavy drag system and bait-clicker makes the Alinox 400 suitable for heavier baitcasting applications such as:
- Barramundi
- Murray cod
- Mangrove jack
- Large swimbaits and hardbody lures
- Live-bait fishing
- Heavy estuary fishing
- Inshore boat fishing
- Bottom fishing with suitable tackle
- Large freshwater species
- Heavier saltwater baitcasting
- Fishing situations requiring greater line capacity

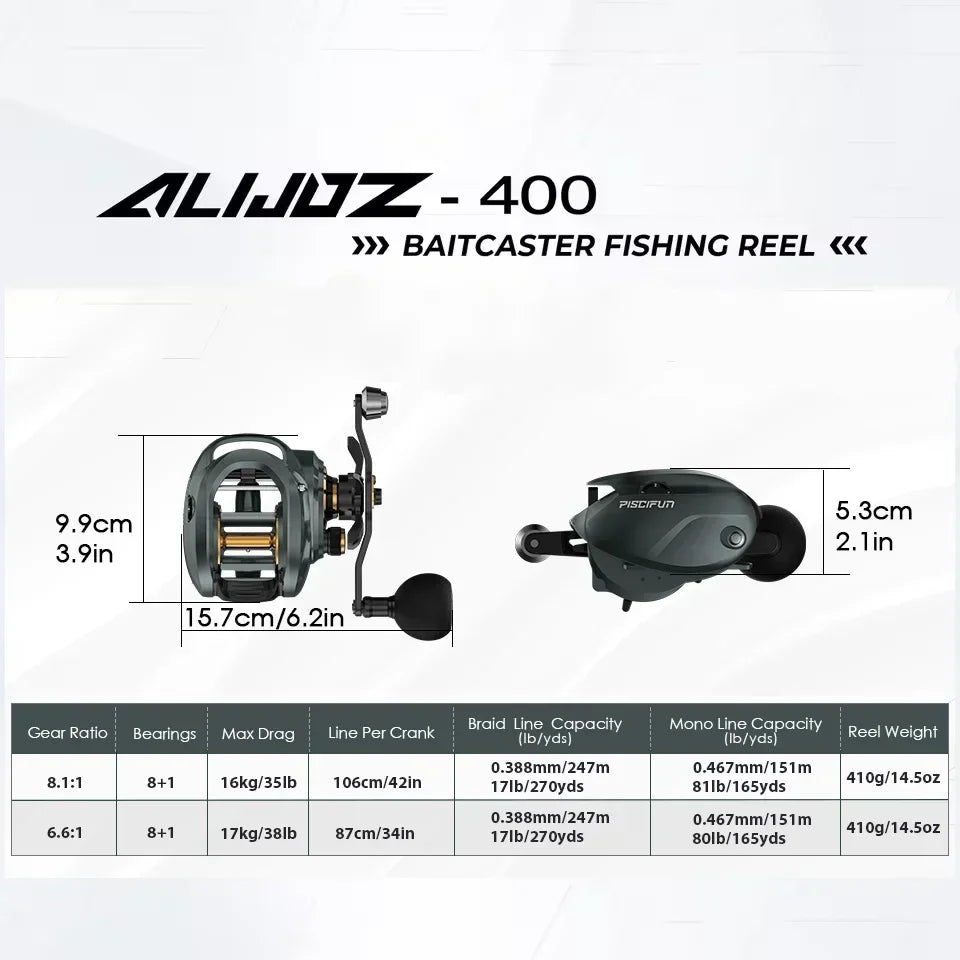

Specifications
- Brand: Piscifun
- Model: Alijoz Alinox 400
- Reel Type: Low-Profile Baitcasting Reel
- Reel Size: 400

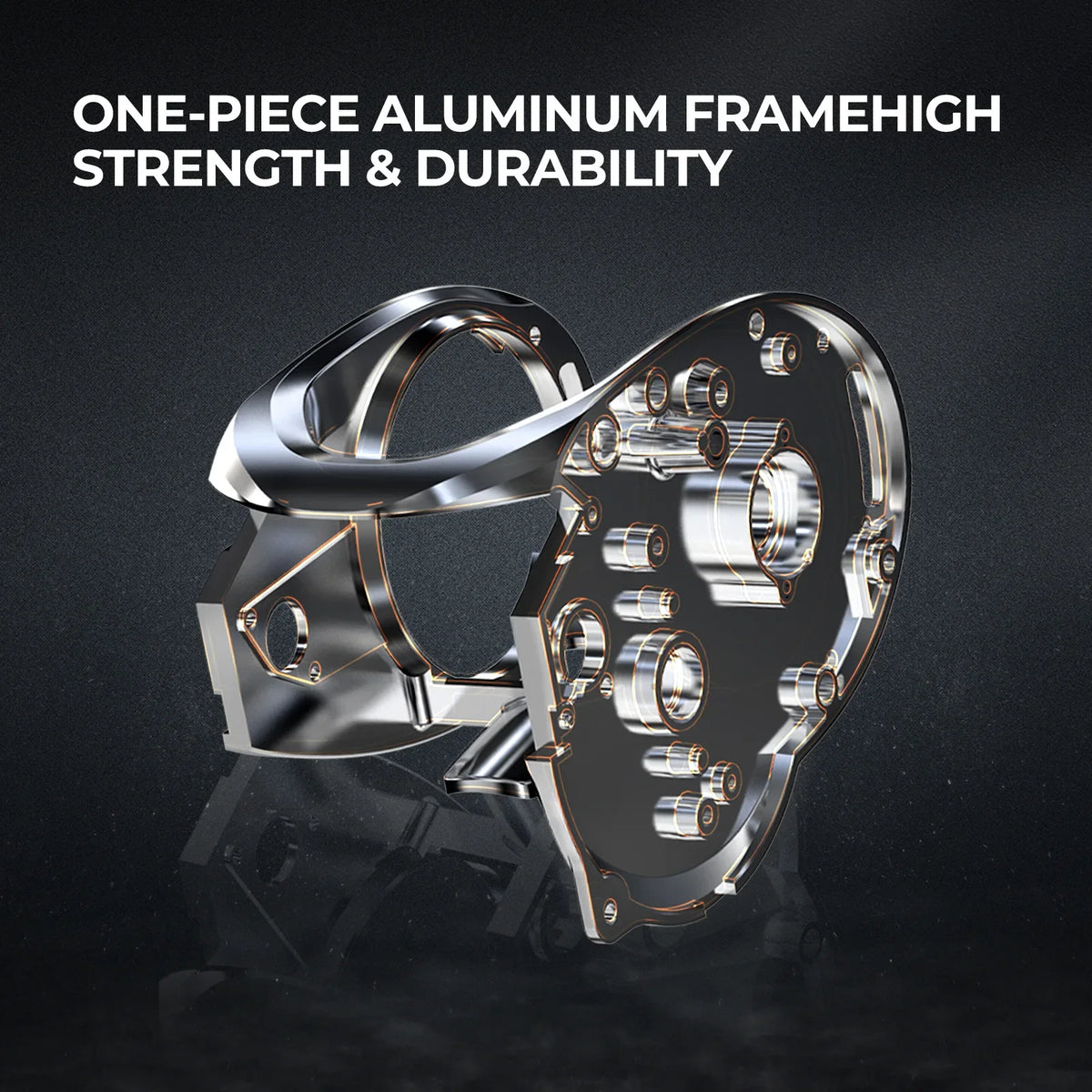

- Frame Material: Aluminium Alloy
- Handle Material: Aluminium Alloy
- Rear Side Cover: Aluminium Alloy
- Bearings: 8+1
- Main Gear: Precision-Machined Hardened Brass
- Pinion Gear: Precision-Machined Hardened Brass
- Gear Ratios: 6.6:1 / 8.1:1
- Maximum Drag – 6.6:1: 17kg / 38lb
- Maximum Drag – 8.1:1: 35lb / approx. 15.9kg
- Drag System: HDS Hercules Drag System
- Casting Brake: Magnetic
- Bait Clicker / Line Alarm: Yes
- Handle Length: 120mm
- Handle Knobs: EVA
- Freshwater Use: Yes
- Saltwater Use: Yes – supplier stated
Please Note
Maximum drag differs between the two gear-ratio configurations. The 6.6:1 model is supplier-rated to 38lb / 17kg, while the 8.1:1 model is rated to 35lb / approximately 15.9kg.
The supplier describes several components as corrosion resistant and the reel as suitable for saltwater fishing, but no formal waterproof or IP rating has been provided.
After saltwater use, rinse the exterior lightly with fresh water without directing high-pressure water into the reel, allow it to dry, and maintain it according to the manufacturer's recommendations.
